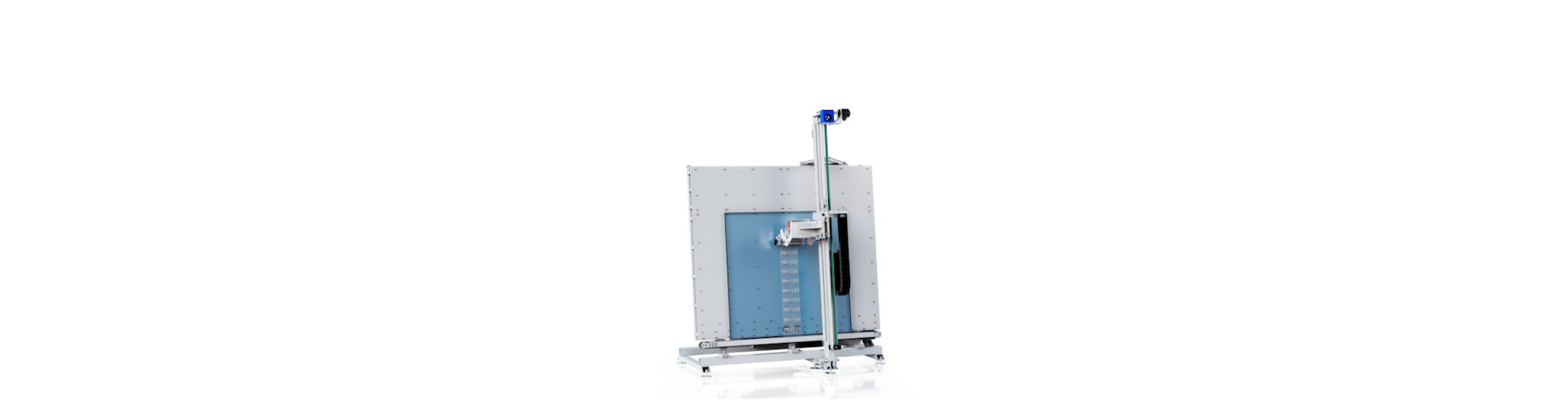

Home >Glass Film Lamination Machine
| Technical Data | ||||
| Max IG Size | 3500X2700mm（L*W）or customized | |||
| Min IG Size | 600X180mm（L*W） | |||
| Max Film Size | 400X300mm（D*W） | |||
| Machine Specification | 2200X2403X4085mm（L*W*H） | |||
| Power Supply | ≈5.5kW | |||
| Film Lamination Speed | 1-35m/min | |||
| Max IG Thickness | ≤90mm | |||
| Transport Height | 500-550mm | |||
? Vertical design enabling compatibility with multiple brand’s IG lines
? Auto-detects IG height or accepts manual/MES system input
? Self-cutting design eliminates manual peeling
? Servo-controlled laminating head movement and glass conveyance and adjustable film edge margins
? Pass-through mode allows re-lamination
? Suction cup stabilizes IG units during film lamination to prevent glass misalignment
? Standard-width film for easy changeovers and low material waste
? Simplified operation reduces setup time, easy maintenance
? 6-9° tilt of the machine accommodates variable IG thickness requirement, adopt multi-strip vertical film laminating method with adjustable film overlap via touchscreen
